Create Secrets Policy

• Open F5® Distributed Cloud Console > select Multi-Cloud Network Connect box.

Note: Homepage is role based, and your homepage may look different due to your role customization. Select All Services drop-down menu to discover all options. Customize Settings: Administration > Personal Management > My Account > Edit work domain & skills > Advanced box > check Work Domain boxes > Save changes.

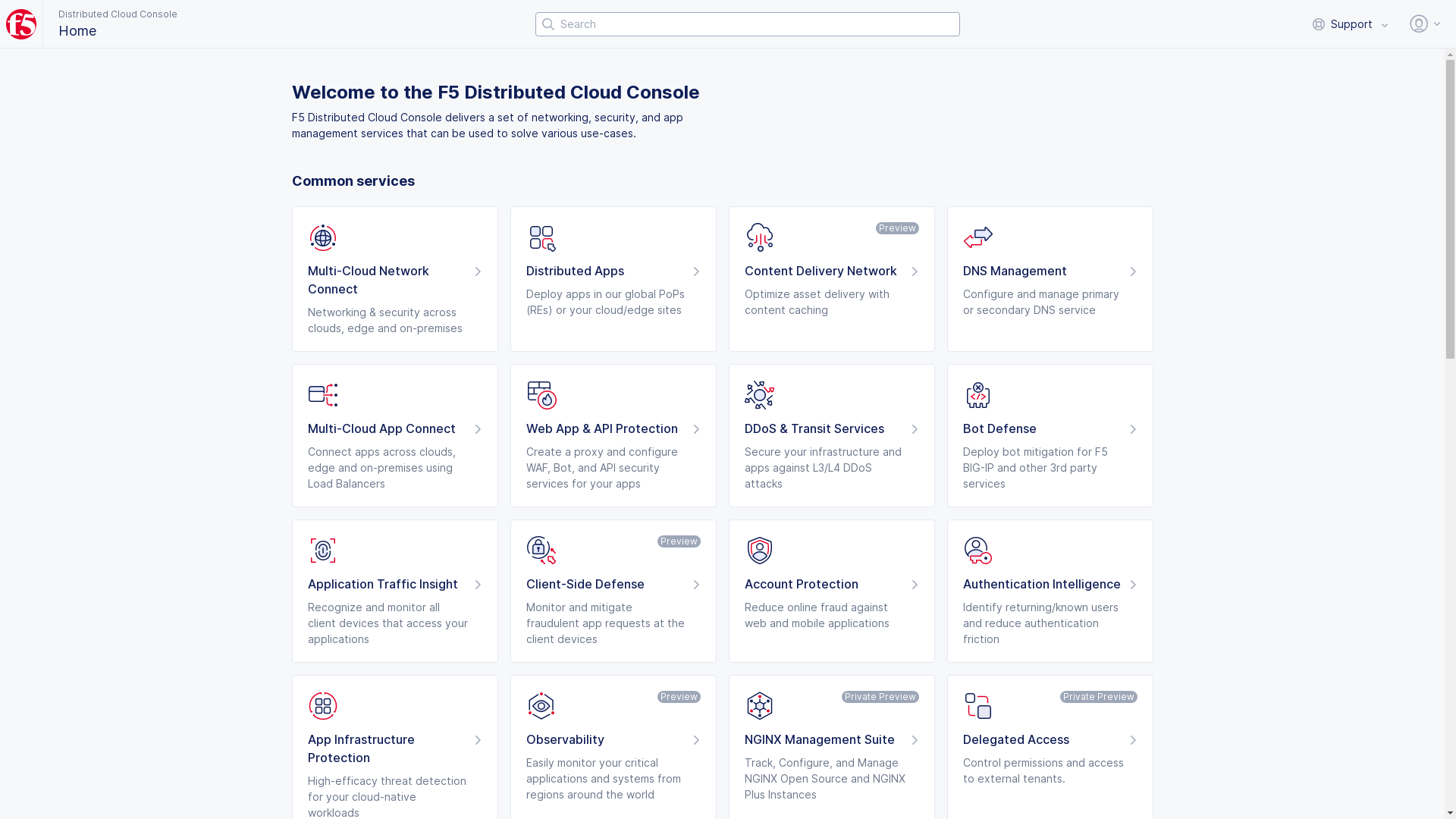

Figure: Console Homepage

Note: Confirm Namespace feature is in correct namespace, drop-down selector located in upper-left corner. Not available in all services.

• Select Manage in left-menu > select Secrets > Secret Policies.

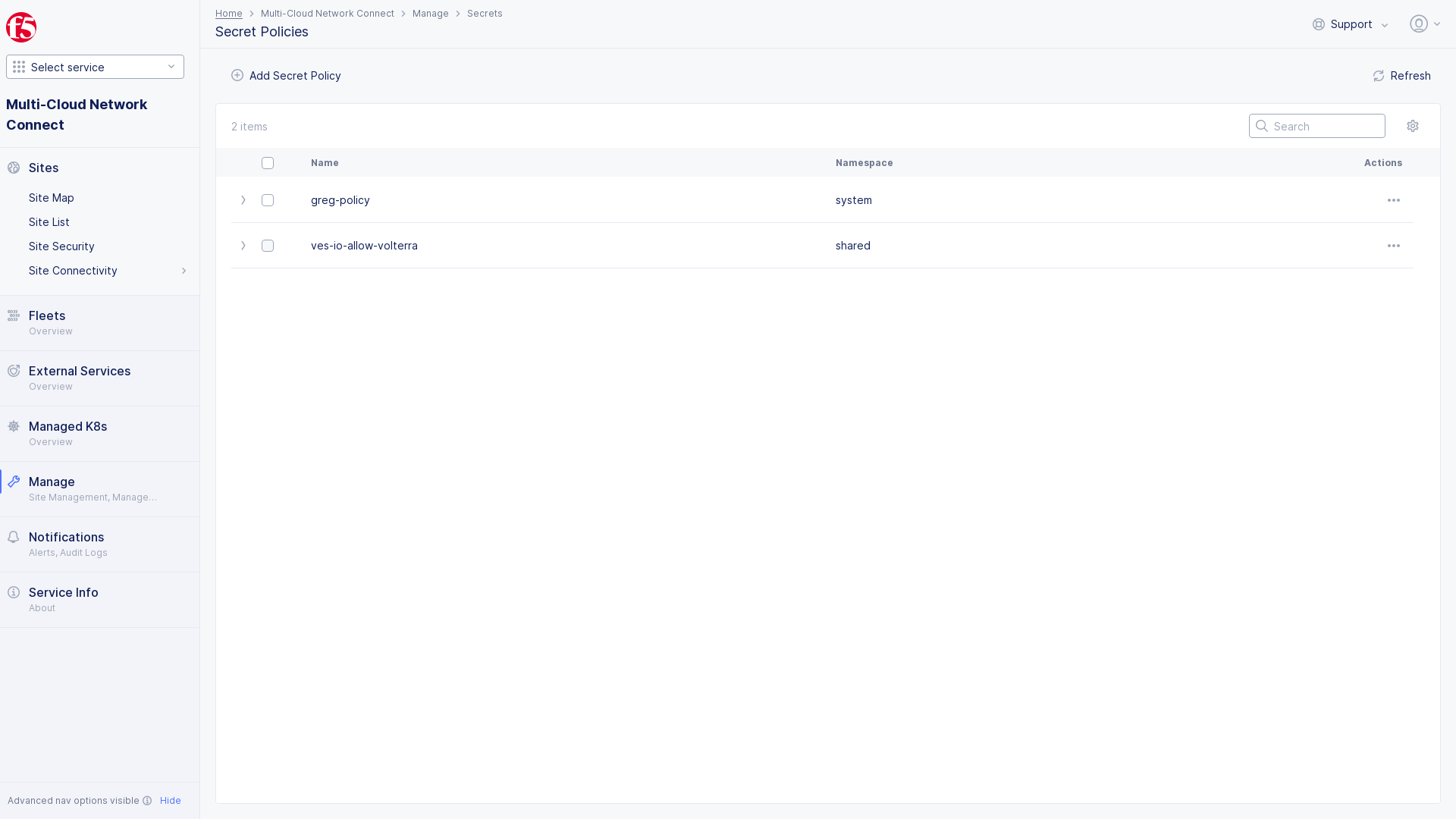

Figure: Secrets Policy

Note: If options are not showing available, select Show link in Advanced nav options visible in bottom left corner. If needed, select Hide to minimize options from Advanced nav options mode.

• Select Add Secret Policy.

Note: The policy creation form gets loaded.

Perform the following steps:

Step 2.1: Name and setup secret policy.

• Enter Name for your secret policy.

• Enter Labels and Description as needed.

• Select Configure in Rules box.

• Select + Add Item in Rules page, to attach a secret policy rule.

• Follow step 2.2 instructions to add Secret Policy Rule.

Figure: Create Secret Policy

• Select Save and Exit.

Step 2.2: Optionally, attach a secret policy rule.

You can select a created rule or create a new rule. This example shows creating a new policy. Select Add secret policy rule in the Secret Policy Rules section. Perform the configuration as per the following guidelines:

• Enter Name for service policy rule.

• Set action in Action drop-down menu:

  • Deny

  • Allow

• Optionally, enter name of the client accessing the server in the Client Selection box.

• Set a label for the Group of Clients by Label Selector box using the label selector expression for the client. Any label applied to the application can be used to write the expression.

Note: For example, set ves.io/interface-type=ves-io-inside as the label expression.

• Optionally, set Client Name Matcher box as per the following guidelines:

  • Exact Values: Exact DNS names of the clients to match. Select + Add item and add the exact value. You can specify more than one entry.

  • Regex Values: Regex patterns for DNS names to match. Select + Add item and add the regular expression to match DNS names. You can specify more than one entry.

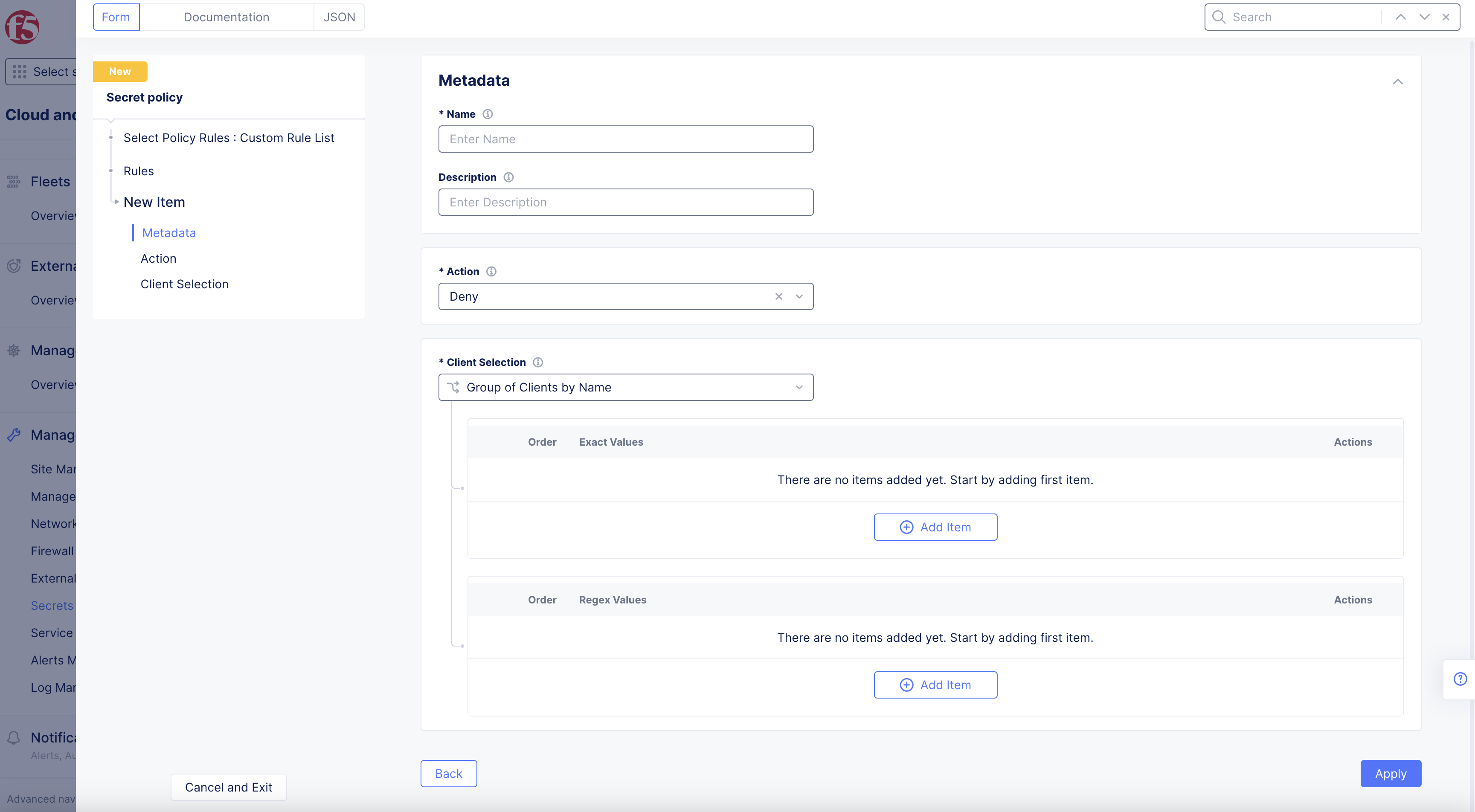

Figure: Create Secret Policy

• Select Save and Exitto create the rule and attach it to the secret policy.

Step 2.3: Complete creating the secret policy.

• Check Allow F5XC box to allow F5 services to decrypt this policy in the Allow F5XC section.

• Enter Decrypt Cache Timeout in box.

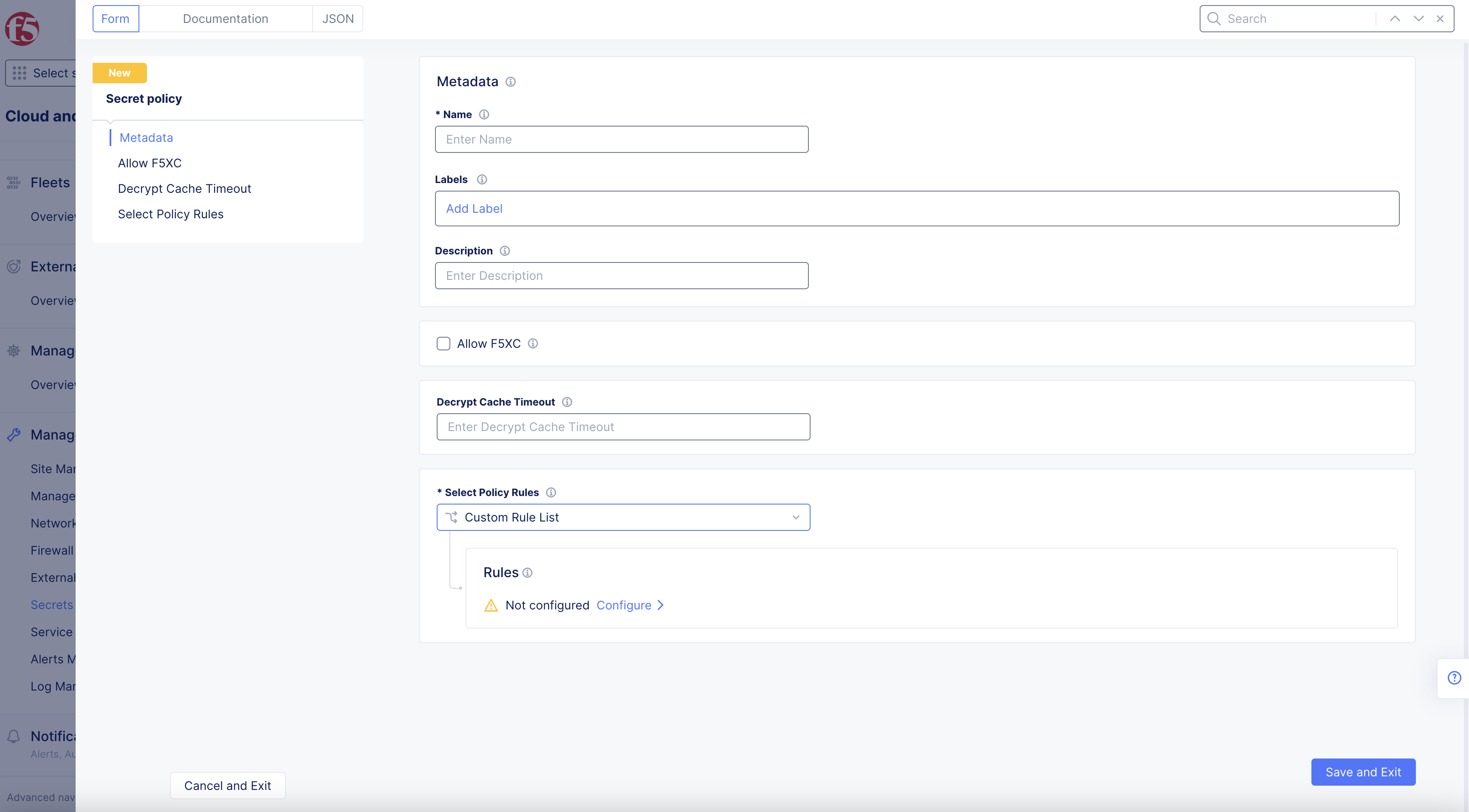

Figure: Create Secret Policy

• Select Save and Exit to complete creating the secret policy.

Secret Policy Accidental Deletion Handling is a feature that allows you to mark a secret-policy for deletion, rather than deleting it from system.

• Select box of policy.

• Delete selected box will appear in upper-right corner.

Note: Policy is cleared form system after 30 days, automatically.

Figure: Delete Secret Policy

• Confirm in Deleting 1 Secret Policy pop-up, select Delete.

• ... drop-down Delete option available.

• Toggle Show Deleted option in upper-right corner to show policies pending deleting if not already showing.

• Pending delete will appear next to policy showing that is marked to be deleted.

• Select ... under Actions to Restore object from menu.

• Object is Restored pop-up will appear in lower-right corner confirming object has been restored from being deleted.

Note: Pending Delete label will no longer show once object has been restored and reversed from being deleted.
